Corrugated Flutes: A Comprehensive Guide to Packaging Solutions
At a cursory glance, the humble cardboard box might seem like a straightforward item, yet it’s far more intricate and sophisticated than it initially appears. Deceptively simple, the construction of these boxes features numerous structural components that provide robustness, protection, and insulation, while offering an invaluable canvas for brand promotion. One of these often-overlooked components is the corrugated flute, a critical aspect of cardboard packaging that plays a vital role in the design and functionality of the box. This comprehensive guide will take a deep dive into corrugated flutes and their role in the packaging industry.
Decoding Corrugated Flutes
Corrugated flutes might escape the naked eye at first, but these wave-like patterns, nestled between the liner layers, form the very backbone of corrugated packaging. Integral to the composition of cardboard boxes, they turn these packages into sturdy containers, making them some of the most reliable methods for shipping and storage.
Key Roles of Corrugated Flutes
Corrugated flutes are much more than just layers of corrugated material. They play a central role in providing corrugated packaging with additional insulation and protection layers. Acting as the structural skeleton of the packaging, these flutes make the package crush-proof and puncture-proof, making it possible for boxes to bear the weight of heavy items without giving way or collapsing.
To further understand the role of these flutes, let’s examine them in a typical shipping scenario. Packages often undergo considerable stress during transit, such as pressure from other boxes, jostling, or even puncture risks. The flutes within the corrugated box provide a cushioning effect that absorbs these shocks and helps protect the contents of the box. As a result, whether you’re shipping delicate glassware or weighty books, you can be confident that your items are secure within their corrugated packaging.

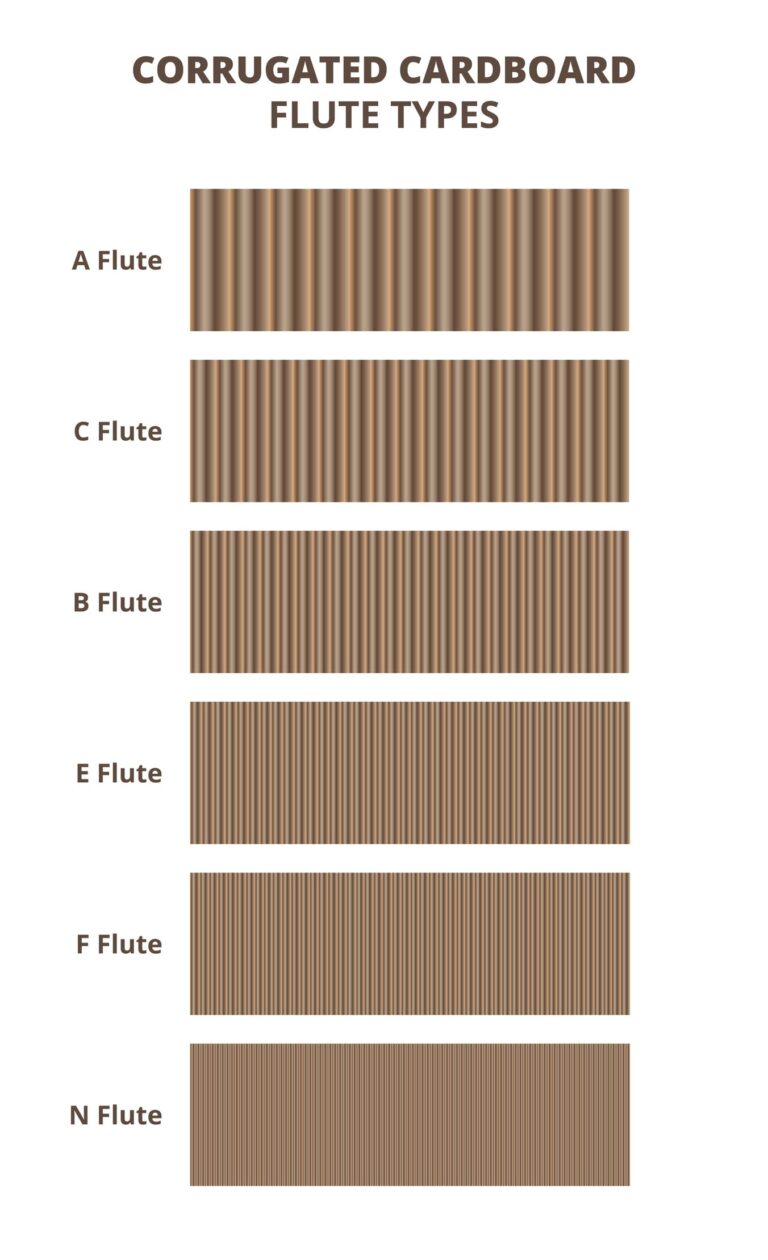

A Detailed Look at the Five Types of Corrugated Flutes
Not all corrugated flutes are created equal. The packaging industry employs five primary types of flutes, each serving specific needs and offering different benefits. Let’s explore these types in more detail:
A Flutes
With a thickness of approximately 5 millimeters or ¼ inch, the A flute is the thickest type available. Around 36 of these flutes can be found within a single linear foot of packaging, resulting in a highly robust structure for heavier items and excellent cushioning for delicate contents.
A flute’s larger size provides optimal strength and compression properties, making it an excellent choice for products that require more support or have a higher risk of breakage. It’s no surprise then that A flutes are often used in packaging electronics, appliances, glass items, and other similar products.
B Flutes
The B flute, about 3.2 millimeters or ⅛ inch thick, falls into the mid-range category. With about 49 flutes per linear foot, it offers considerable crush and puncture resistance. B flutes provide an excellent surface for printing words, graphics, and logos directly onto the corrugated cardboard.
Thanks to its combination of stiffness and compactness, the B flute is commonly used in retail packaging for items like canned goods. It is also commonly used in stand-up displays and for smaller boxes requiring a more refined print.
Die cut boxes, generally use B – flute, as relatively small flute thickness helps when there a several scores and folds.
C Flutes
Being the second-thickest, C flutes measure around 3.2 millimeters or 11/64 inches in thickness, and about 41 flutes fit within a single linear foot. These flutes are ideal for shipping boxes due to their excellent resistance to crushing and compression.
A C flute’s excellent stacking strength and printing capabilities make it a popular choice for transporting heavier products. Whether you’re moving a kitchen appliance or a batch of fresh produce, C flutes offer the durability and support needed.
C- flute is the most popular thickness for general shipping boxes.
E Flutes
Second in thinness, E flutes are approximately 1.6 millimeters or 1/16 inch thick. As many as 90 flutes fit within a single linear foot, resulting in a lightweight but strong structure. The thinness of E flutes makes them an excellent choice for reducing storage space and costs.
Because of its thinness and excellent printing surface, E flutes are commonly used in packaging consumer goods, particularly those requiring a more sophisticated presentation, such as cosmetics and high-end electronics.
F Flutes
The thinnest of all, F flutes measure around 0.8 millimeters or 1/32 inch in thickness. About 128 flutes can be found within a single linear foot, making them ideal for creating stiff packaging for specific consumer goods. Due to their thinness and smooth printing surface, F flutes are often used in retail packaging for luxury goods and other high-end items.
Going Beyond Flutes: Board Types, Box Styles, and Printing Methods
Understanding the world of corrugated packaging goes beyond flutes. There are several other critical considerations, such as board type, box style, and printing type. Each of these factors plays a vital role in determining the best packaging solution for specific products and brands.
Board Type
Corrugated packaging materials consist of a combination of flutes and liners, and this combination can vary depending on the packaging’s intended use. Let’s look at the four primary types of corrugated board:
- Single-face: As the name suggests, a single-face board consists of one layer of fluting and one liner layer. Although it’s not as durable as other types, its cushioning properties make it ideal for additional inner packaging components.
- Single-wall: This is the most commonly used board type, comprising one layer of fluting sandwiched between two liners. It offers sufficient insulation and protection, making it a popular choice for shipping cartons.
- Double-wall: Essentially two boxes in one, a double-wall board has three liner layers surrounding two layers of fluting. This super-durable board type is excellent for packaging heavy industrial items.
- Triple-wall: The most durable board type available, a triple-wall board has four liner layers and three fluting layers. It’s like having three boxes in one, which makes it ideal for robust applications such as extremely heavy metal pieces, equipment and chemical containers.
Box Style
Contrary to common belief, corrugated cardboard doesn’t come only in the form of a typical square box. There are countless box styles available that incorporate corrugated flutes and liners, tailored to suit your products and brand:
- Mailer box: Efficient, protective, and stylish, mailer boxes come with smart features like dust flaps that seal and protect the package’s contents. They are frequently used by e-commerce and subscription businesses.
- One-piece folder box: A one-piece folder box offers simplicity, elegance, and easy assembly. Comprising a single piece of corrugated cardboard, it can be quickly assembled to ship items like books or artwork.
- Shipping box: Classic and protective, a shipping box boasts a single-wall design with C or B fluting, suitable for shipping a wide range of items.
Printing Type
Corrugated packaging presents a golden opportunity for branding. You can print directly onto the cardboard to showcase your logo and products. There are several options for printing onto corrugated material, including flexographic, lithographic, and digital:
- Lithographic printing: This method is perfect for bulk printing jobs, as it uses customized plates to guide the printing process. It offers high-resolution print quality, making it suitable for high-end packaging and displays.
- Flexographic printing: As the most common type of printing, flexographic printing is quick, easy, and cost-efficient. It’s suitable for a wide range of packaging needs.
- Digital printing: This is ideal for small-scale printing jobs since there’s no need for customized plates. It offers the advantage of low setup costs and quick turnaround times, making it perfect for custom or short-run print jobs.
If you are interested in corrugated packaging, then partner with Brown Packaging today to get started.
