Folding Carton Materials and Design Factors
The choice of material and structural design in folding cartons is directly tied to performance, cost, and consumer perception. The right pairing can mean the difference between a carton that excels on the shelf and one that fails during distribution. This guide explores how board types, caliper, coatings, and structural details interact to influence strength, appearance, and production efficiency.

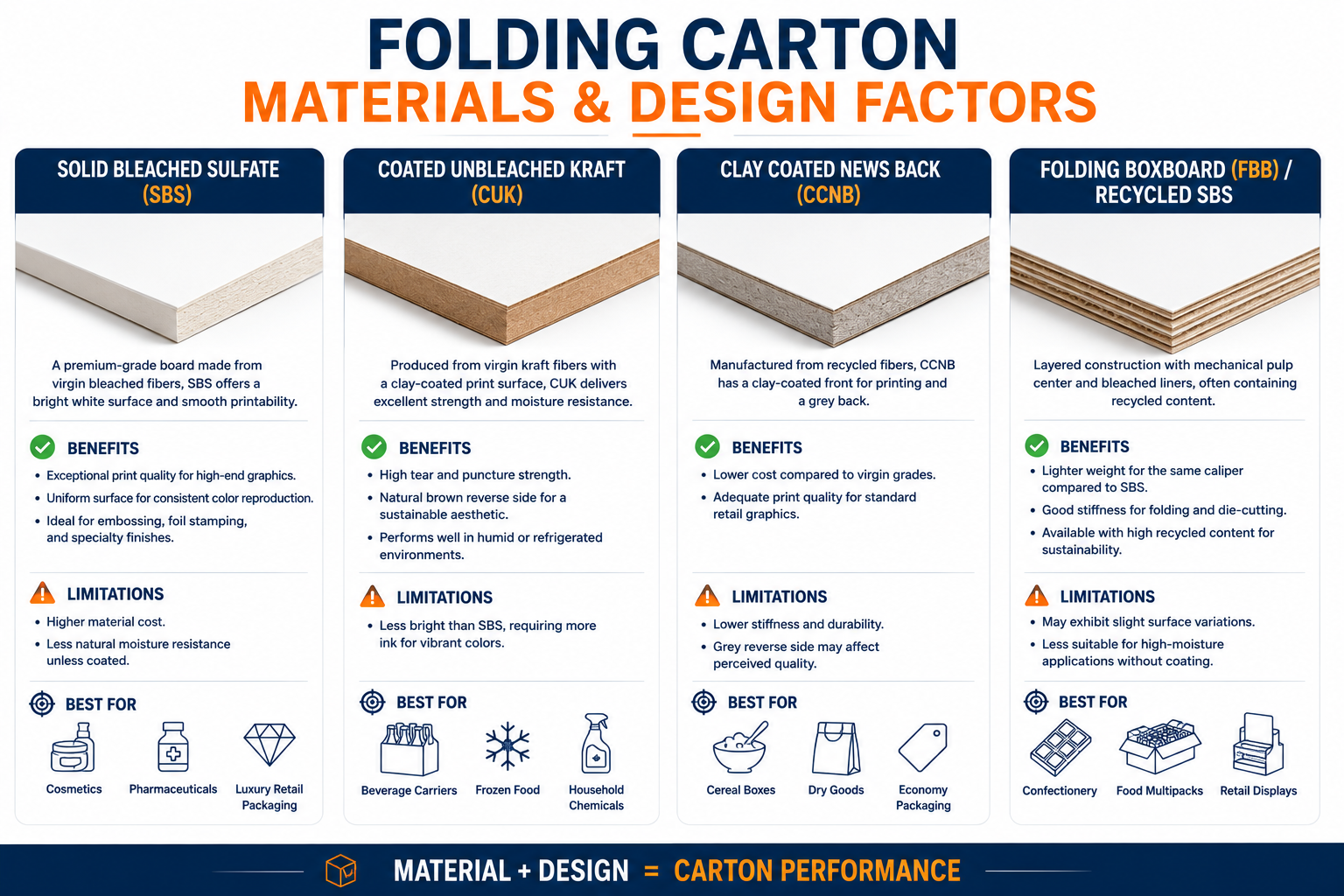

Solid Bleached Sulfate (SBS)
A premium-grade board made from virgin bleached fibers, SBS offers a bright white surface and smooth printability.
Benefits:
- Exceptional print quality for high-end graphics.
- Uniform surface for consistent color reproduction.
- Ideal for embossing, foil stamping, and specialty finishes.
Limitations:
- Higher material cost.
- Less natural moisture resistance unless coated.
Best For: Cosmetics, pharmaceuticals, luxury retail packaging.
Coated Unbleached Kraft (CUK)
Produced from virgin kraft fibers with a clay-coated print surface, CUK delivers excellent strength and moisture resistance.
Benefits:
- High tear and puncture strength.
- Natural brown reverse side for a sustainable aesthetic.
- Performs well in humid or refrigerated environments.
Limitations:
- Less bright than SBS, requiring more ink for vibrant colors.
Best For: Beverage carriers, frozen food, household chemicals.
Clay Coated News Back (CCNB)
Manufactured from recycled fibers, CCNB has a clay-coated front for printing and a grey back.
Benefits:
- Lower cost compared to virgin grades.
- Adequate print quality for standard retail graphics.
Limitations:
- Lower stiffness and durability.
- Grey reverse side may affect perceived quality.
Best For: Cereal boxes, dry goods, economy packaging.
Folding Boxboard (FBB) / Recycled SBS
Layered construction with mechanical pulp center and bleached liners, often containing recycled content.
Benefits:
- Lighter weight for the same caliper compared to SBS.
- Good stiffness for folding and die-cutting.
- Available with high recycled content for sustainability.
Limitations:
- May exhibit slight surface variations.
- Less suitable for high-moisture applications without coating.
Best For: Confectionery, food multipacks, retail displays.
Structural Design Considerations
Caliper (Thickness):
A thicker board improves compression and crush resistance but increases cost and shipping weight.
Grain Direction:
Impacts fold quality—incorrect grain direction can cause cracking along scores.
Scoring & Creasing:
Accurate scoring is critical to avoid stress fractures and ensure smooth folding in high-speed lines.
Coatings & Laminations:
- Gloss/Matte Varnish: Aesthetic enhancement and light scuff protection.
- Polyethylene Coating: Moisture and grease barrier.
- Metallized Films: Barrier properties and premium shelf appearance.
Material–Design Interaction
- Thin SBS with a complex auto-bottom structure may lead to folding failure under load.
- High-detail graphics on CUK may require additional ink density to match SBS appearance.
- Moisture-prone products perform better in CUK or poly-coated SBS.
- Precision folds in intricate die cuts often favor SBS or softer recycled FBB for reduced cracking.
Trade-Offs and Limitations
- Increased caliper enhances durability but reduces folding speed and raises cost.
- Gloss and film coatings can impede recyclability.
- Stronger substrates may require higher die-cutting pressure, impacting tooling life.
References
Soroka, W. (2014). Fundamentals of packaging technology (5th ed.). Institute of Packaging Professionals. ISBN: 978-1-930268-37-2
Twede, D., & Goddard, R. (2021). Cartons, crates and corrugated board: Handbook of paper and wood packaging technology (2nd ed.). DEStech Publications. ISBN: 978-1-60595-120-5
